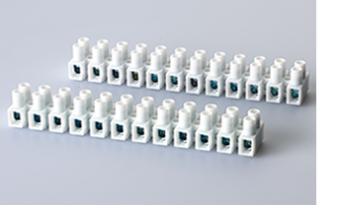

Terminal Blocks / LusterklemmenTerminal Block - PP Housing & Steel Insert

●	Terminal Strips & Lüsterklemmen
●	Polypropylene, UL 94V-2 flame-retardant housing.
●	Zinc-plated steel contacts.
●	Recessed screws and tubular contacts provide added safety and help prevent short circuits.
●	Easy cutting design.
●	Save more cost with no compromise on quality.
●	For use in electrical appliances, lighting and building wiring. Especially in DIY & Installation applications.

Model No.	Color	Contacts	Clamping Area/Wire Range	Electrical Rating	Packing
PA20P	White	steel	0,5 - 4 mm² 22-12 AWG, Cu	32 A, 450 V, T85 20 A, 300 V, 65°C (149°F)	50 Pcs/Bag 500 Pcs/Ctn
PA30P	White	steel	1 - 6 mm² 22-10 AWG, Sol Cu 14-10 AWG, Str Cu	41 A, 450 V, T85 25 A, 300 V, 65°C (149°F)	50 Pcs/Bag 500 Pcs/Ctn
PA40P	White	steel	2,5 - 10 mm² 18-10 AWG, Sol Cu 16-10 AWG, Str Cu	57 A, 500 V, T85 30 A, 300 V, 65°C (149°F)	40 Pcs/Bag 400 Pcs/Ctn
PA50P	White	steel	4 - 16 mm²	76 A, 500 V, T85	25 Pcs/Bag 250 Pcs/Ctn
PA60P	White	steel	10 - 25 mm²	101 A, 750 V, T85	10 Pcs/Bag 100 Pcs/Ctn
