HEAVY POWER : Product : Push-In Wire Connectors / Dosenklemme : Compact Type PC225 Series

Home / Product / Push-In Wire Connectors / Dosenklemme

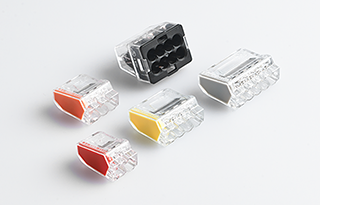

Push-In Wire Connectors / DosenklemmeCompact Type PC225 Series

●	25% more compact in size than original types with cost-saving effectiveness.
●	For use with rigid / solid conductors.
●	Polycarbonate and Polyamide , UL 94V-0 flame-retardant shell.
●	Spring force connector constructed from tinned steel plate with copper strip and spring steel.
●	Color-coded for quick and easy identification.

Model No.	Color	Poles	Electrical Ratings	Clamping Area Wire Range	Packing
PC2252	Red	2	24 A, 450 V, T85	0,5 - 2,5 mm² Rigid Single-core Rigid Multi-core	1,000 Pcs/Bag 10,000 Pcs/Ctn
PC2253	Orange	3	24 A, 450 V, T85	0,5 - 2,5 mm² Rigid Single-core Rigid Multi-core	1,000 Pcs/Bag 8,000 Pcs/Ctn
PC2254	Yellow	4	24 A, 450 V, T85	0,5 - 2,5 mm² Rigid Single-core Rigid Multi-core	500 Pcs/Bag 5,000 Pcs/Ctn
PC2255	Grey	5	24 A, 450 V, T85	0,5 - 2,5 mm² Rigid Single-core Rigid Multi-core	500 Pcs/Bag 5,000 Pcs/Ctn
PC2258	Black	8	24 A, 450 V, T85	0,5 - 2,5 mm² Rigid Single-core Rigid Multi-core	400 Pcs/Bag 4,000 Pcs/Ctn
